該型攪拌器采用目前最先進的環面蝸桿傳動技術，具有體積小、承載力大、傳動效率高、使用壽命長、節約成本等特點，適用于高端泥漿循環系統配套，是老式攪拌器的替代產品。輸入軸最大轉速為1500轉/分，當環境溫度低于0°時，必須加溫至0°以上或更換低溫潤滑油。在鉆井液循環系統中使泥漿混合均勻、性能穩定，避免了固相顆粒沉積，配合除砂器、除泥器、離心機使用，減少泥漿中有害的固相顆粒，滿足鉆井的需求。
Torus envelope mixer function
Mixer, with large carrying capacity, high transmission efficiency, long life and other characteristics, can be widely used in all kinds of mechanical transmission. The environment temperature for - 40-50 degrees, input shaft maximum speed is 1500 RPM, commonly special need of up to 3000 RPM, forward and reverse operation. Is mainly used in oil field drilling mud system, make the drilling fluid in drilling fluid circulation system in tank circumferential flow and radial flow and axial flow, avoid the deposition of solid phased particles, the stability of the drilling fluid performance.

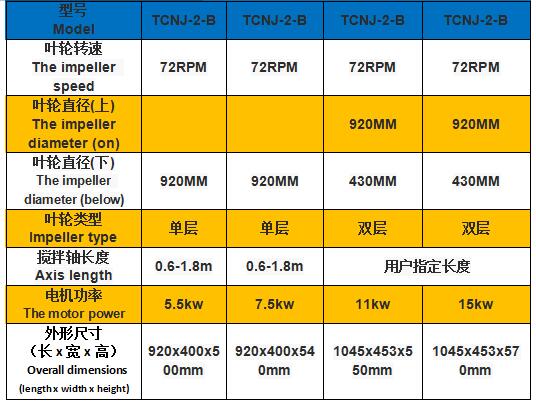

技術參數technical parameter
